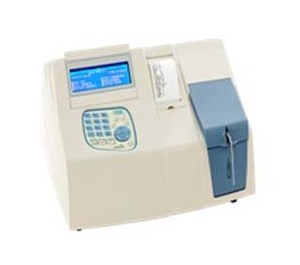

Chem 5X is a low cost, compact, high performance, 16 bit micro controller based semi-automated analyzer for all Routine Clinical Chemistries, Electrolytes, Immuno Turbidimetric assays
* Semi-automated analyzer.
* Monochromatic & bichromatic measurement.
* Multi-point calibration with graphical display.
*Built- in self diagnosis with help key facility.
* Repeat measurement with read key.
*Dual cuvette system and inbuilt thermal printer.
* USB connectivity to external printer and PC.
Entire range of Clinical Chemistry tests including Electrolytes and Immuno Turbidometric Assays 150 open user-defined test programs.
9 Assay modes:-
* 1 Point Linear.* Rate A Linear.
* 2 Point Linear.* Rate A Non-Linear.
* 1 Point Non Linear.* 1 Point Sample Blank Linear
* 2 Point Non-linear.* 1-Point Sample Blank Non-Linear.
* Absorbance.
Mono & Bichromatic measurement
Photometric range from 0 to 3.0 OD
Photometric resolution up to 0.0001
Automatic zero setting
Static Photometer: 340-630 n.m.
Wavelength:: 340, 405, 505, 546, 578, 630 n.m.
Multi-Point calibration with graphical display,Levy-Jennings graph for quality control,1000 Test patient,pesults storage,Peristaltic pump aspiration system with calibration facility
* Flow cell volume-33 µl.
* • 10 mm external glass / Polystyrene.
Aspiration volume from 350 to 999 µl .
Temperature control at 25°, 30° & 37° C .
Repeat measurement by read key .
Collated report date wise, ID wise (Alphanumeric)
Inbuilt Thermal Printer .
Direct Printer Connectivity through USB Port .
USB Connectivity to PC .
Connectivity to external Incubator (Optional with 16 position.
Contact Us
* Semi-automated analyzer.
* 56 direct access keys.
* Temperature selection for 20°C - 40°C in increment of 1°C.
* 5 reporting formats.
* Online display of reaction curve.
* Result recalculation.
* Three levels of quality control with Levy Jennings plot.
* 5 reporting formats.
* USB port interface for PC & printer.
Entire range of Clinical Chemistry, Electrolytes, Immunoassays and Coagulation test
Optical Module:
* Static photometer with photometric range (340-670).
* 8 Interference filters 340, 405, 450, 505, 546, 578, 600 and 670 n.m.
* Silicon photodiode detectors.
* Photometric range from 0 to 3.0 OD
* Quartz Halogen lamp of 12V, 20W.
* Unique Triple cuvette system.
* 18 µl Flow cell.
* 10 mm Square cuvette.
* 6 mm Round glass tube with adaptor.
* Peltier temperature control: 20°C - 40°C in increment of 1°C.
* Peristaltic Pump.
* Minimum aspiration volume 200 µl.
* 1-point linear.
* Rate A non-linear.
* 2-point linear.
* 1-point sample blank linear.
* 1-point non-linear.
* 1-point sample blank non-linear.
* 2-point non-linear.
* Absorbance.
* Rate A linear.
* Coagulation.
*200 User defined test programs
*1000 test result
*Reagent Blank
*3 Levels of QC
*Collated Reports by Date, ID, Date & ID
*Test & Date wise
*Patient Demographics
*Daily and monthly monitoring for 3 Levels Levy-Jenning QC graphs
*• High resolution graphics LCD with backlight.
*• View Area: 120 x 92 mm
*• Keyboard: 41 Multifunction Keys and 6 dynamic keys
Printer:In built high resolution graphic thermal printer
Interface:* USB connectivity to PC.
* Direct printer connectivity through USB port.
* Port for External keyboard.
Power:External Universal SMPS adapter 18V DC, 70W, 115/230V AC (± 10%), 50/60 Hz
Size:(mm): 205 (H) x 450 (W) x 300(D)
Weight: Approx. 7 Kgs.
Optional Accessories: External 16 Position Dry Block Incubato
